1. pom.xml 수정 <java-version>1.8</java-version>
<org.springframework-version>5.0.7.RELEASE</org.springframework-version>
2. spring 관련 라이브러리 추가 <!-- Spring tx, test, jdbc-->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>${org.springframework-version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>${org.springframework-version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${org.springframework-version}</version>
</dependency>
3. Mybatis 및 HikariCP,mybatis-spring, Log4jdbc 라이브러리 추가 <!-- Mybatis -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.4.6</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>1.3.2</version>
</dependency>
<!-- log4jdbc -->
<dependency>
<groupId>org.bgee.log4jdbc-log4j2</groupId>
<artifactId>log4jdbc-log4j2-jdbc4</artifactId>
<version>1.16</version>
</dependency>
<!-- HikariCP -->
<dependency>
<groupId>com.zaxxer</groupId>
<artifactId>HikariCP</artifactId>
<version>2.7.8</version>
</dependency>
4. Lombok추가 및 jUnit버전 변경 <!-- lombok -->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.18.0</version>
<scope>provided</scope>
</dependency>
<!-- jUnit -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
</dependency>
5. Servlet 버전 변경 <!-- Servlet -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>3.1.0</version>
<scope>provided</scope>
</dependency>
6. Maven관련 Java버전 수정 <plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>2.5.1</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
<compilerArgument>-Xlint:all</compilerArgument>
<showWarnings>true</showWarnings>
<showDeprecation>true</showDeprecation>
</configuration>
</plugin>
프로젝트명 우클릭하여 Maven > Update Project 실행
7. Oracle JDBC Driver를 Build Path에 추가

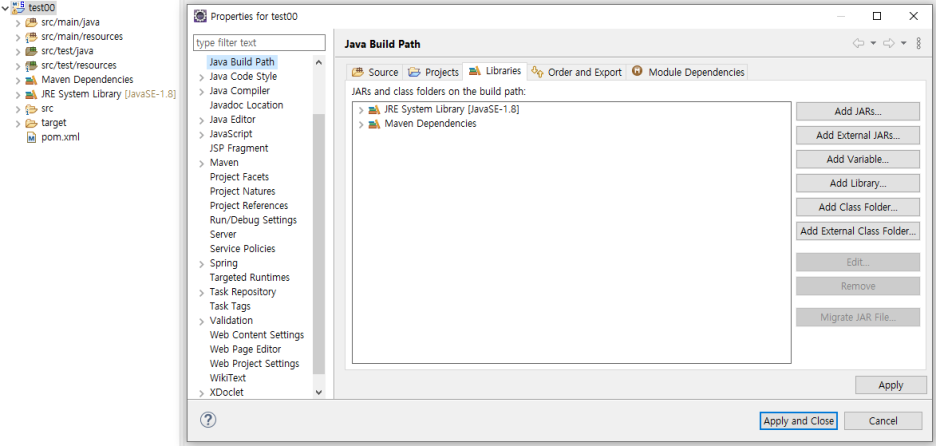

프로젝트 우클릭 후 Properties 클릭
Java Build Path 클릭 후 Libraries탭 확인
우측에 'Add External JARS...' 클릭
sqldeveloper 설치경로 jdbc/lib 밑에 ojdbc6.jar 파일 선택

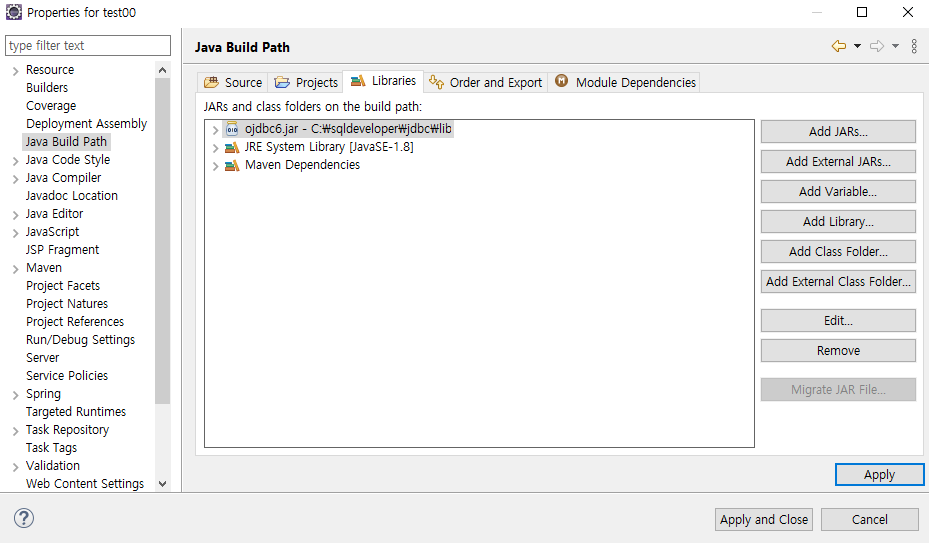

추가 된 것을 확인
우측하단 Apply 클릭

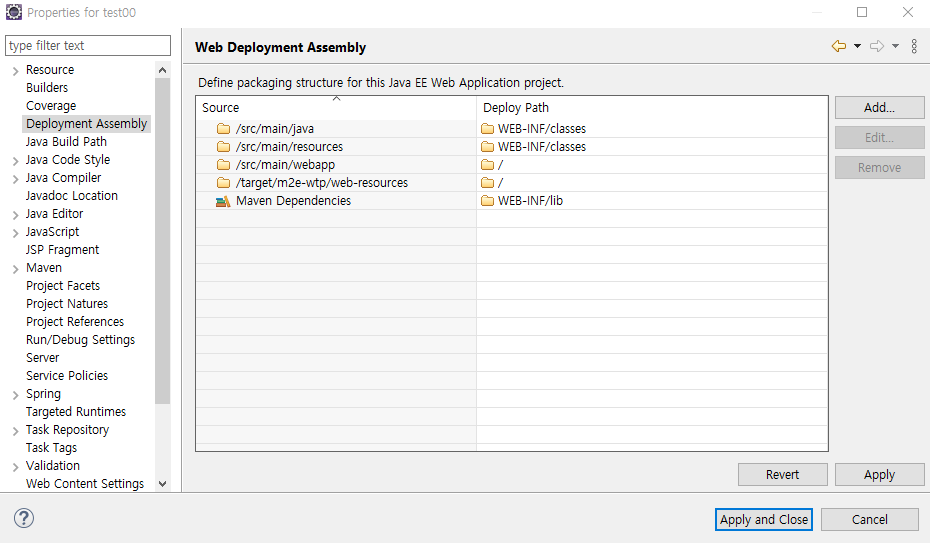

Deployment Assembly 로 이동
Add버튼 클릭

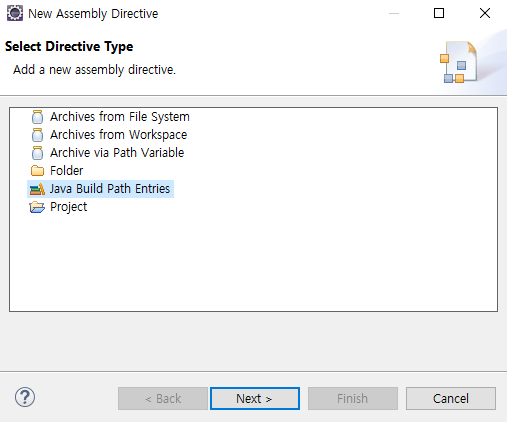

Java Build Path Entries 클릭
Next 클릭

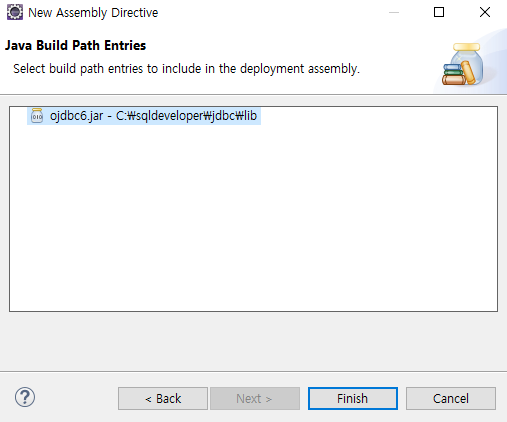

ojdbc6.jar 선택
Finish 클릭
추가 된 것을 확인
Apply and Close 클릭
8. root-context.xml 수정 <?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:mybatis-spring="http://mybatis.org/schema/mybatis-spring"
xsi:schemaLocation="http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring-1.2.xsd
http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd">
<!-- Root Context: defines shared resources visible to all other web components -->
<bean id="hikariConfig" class="com.zaxxer.hikari.HikariConfig">
<property name="driverClassName" value="net.sf.log4jdbc.sql.jdbcapi.DriverSpy"></property>
<property name="jdbcUrl" value="jdbc:log4jdbc:oracle:thin@localhost:1521:XE"></property>
<property name="username" value="test"></property>
<property name="password" value="test"></property>
</bean>
<!-- HikariCP configuration -->
<bean id="dataSource" class="com.zaxxer.hikari.HikariDataSource" destroy-method="close">
<constructor-arg ref="hikariConfig"/>
</bean>
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource"></property>
</bean>
<mybatis-spring:scan base-package="com.test.mapper" />
</beans>
root-context.xml은 내부적으로 Log4jdbc를 이용하는 방식으로 구성되어 있어
src/main/resources에 'log4jdbc.log4j2.properties' 파일을 추가
log4jdbc.spylogdelegator.name=net.sf.log4jdbc.log.slf4j.Slf4jSpyLogDelegator
끝!
